The Add to Map – Facet allows the user to add all occurrence records for one or more classes of a species attribute (facet) or class derrived from a contextual layer to the map (see image below for the choices of facet).

Note, this option does not allow for the faceting of previously defined areas, or for the use of species or species assemblages layers. However, occurence records can be filtered by an area defined during the process, as explained below.

An example of a facet would be for all occurrence records with a ‘Lifeform’ class of ‘Fungi’, ‘Chromista’ etc., or as having a ‘Basis of record’ class of ‘GenomicDNA’, or ‘Data Provider’ class of ‘Barcode of Life’ (BOLD). (See images below).

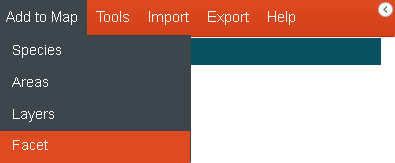

Add to Map Facet menu option

Add to Map Facet menu option

From the menu option, select ‘Add to Map’, and then ‘Facet’.

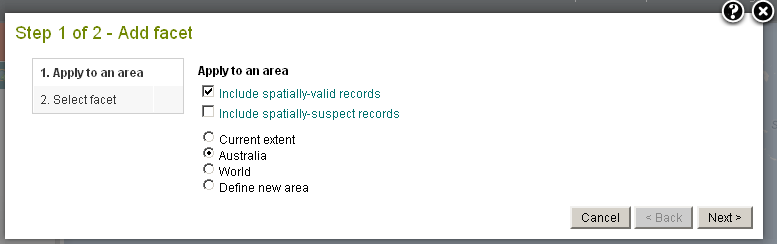

Add Facet to a selected area

Add Facet to a selected area

It is best to choose only spatially-valid records, unless this yields too few records for the application.  The ‘Define new area’ will involve an extra step (please refer to Add Area for additional information).

Facets

Facet selection

Choose one or more classes from the selected facet.

The current facet-able variables are (but these can change as new data is added):

—————      Custom       —————
Dataset
data_provider
Coordinate uncertainty (in metres)
Date (by decade)
—————     Taxonomic     —————
Scientific name
Scientific name (unprocessed)
Common name (processed)
Subspecies
Genus
Family
Order
Class
Phylum
Kingdom
Lifeform
Identified to rank
Species interaction
Species habitats
—————    Geospatial     —————
Country
State/Territory
Local Gov. Area
Dynamic land cover
IBRA 7 regions
IMCRA 4 regions
Sensitive records
Spatial validity
State conservation status
State conservation status (unprocessed)
Vegetation types – native
Vegetation types – present
—————     Temporal      —————
Month
Year
Decade
—————  Record details   —————
Record type
Specimen type
Multimedia
Collector
—————    Attribution    —————
User
Dataset
Provenance
————— Record assertions —————
Associated records
Record issues
Assertions by user
Outlier layer count
Outlier for layer
Taxon identification issue

If the number of classes within the facet is large, the classes will be paged. Paging of classes will also occur when selecting classes from facets on the map legend.

Three example facet images are shown below. Only one facet can be chosen but subsequent faceting of the mapped layer can be done using the layer legend (see below).

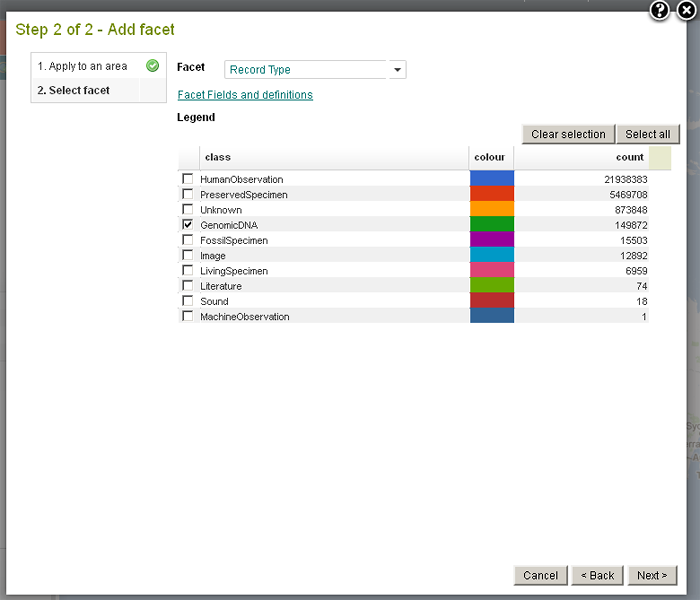

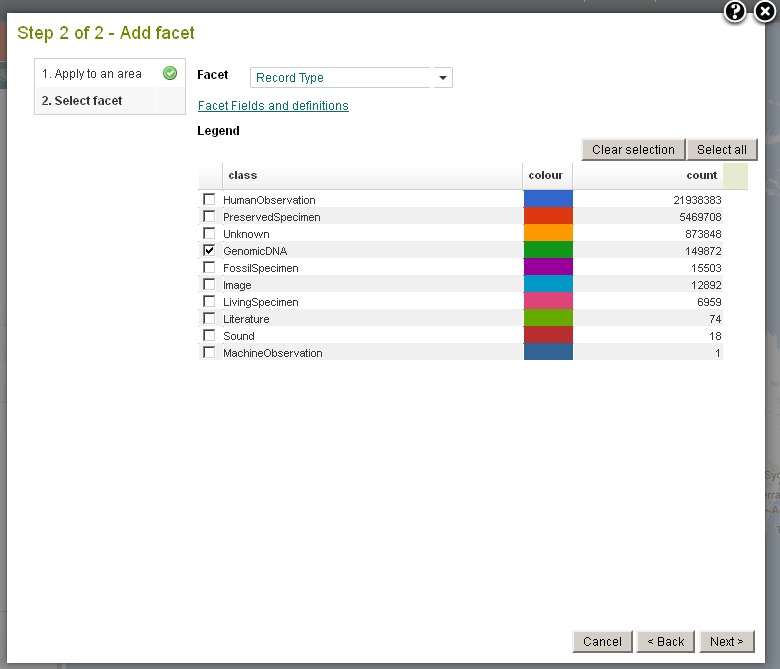

Add facet of Record Type

Add facet of Record Type

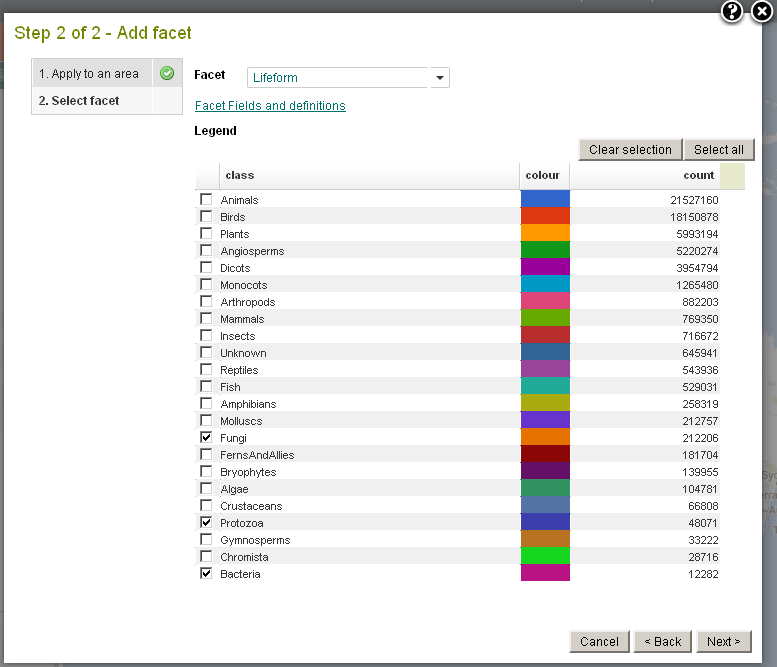

Add facet of Lifeform

Add facet of Lifeform

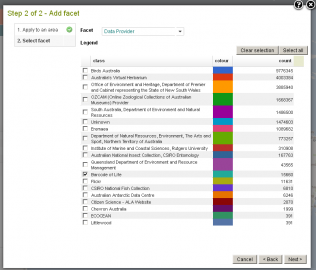

Add facet of Data Provider

Add facet of Data Provider

The following example, shows the resultant map after choosing to Add to Map a facet of ‘Basis of Record’ and selecting the class of ‘GenomicDNA’. Currently, only one data set in the Atlas, the ‘European Molecular Biology Laboratory Australian Mirror (EMBL)’ holds records labelled as molecular data. The layer had been renamed to ‘GenomicDNA’, by pressing the ‘Rename’ button and renaming the layer.

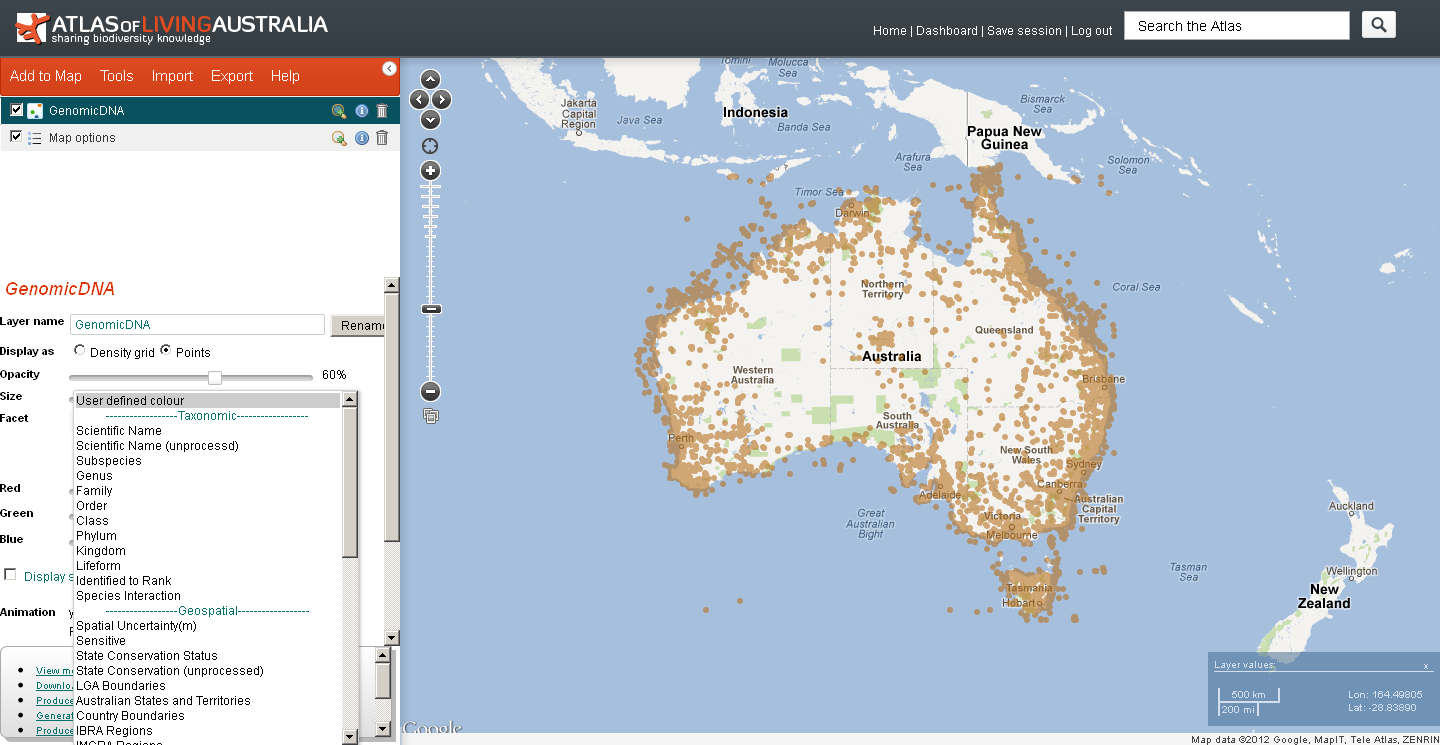

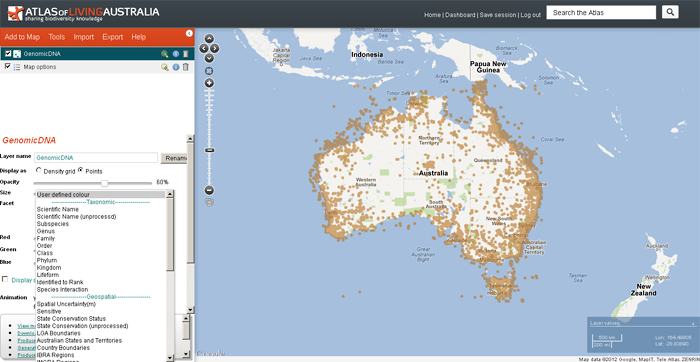

Facet of all GenomicDNA occurrence records

Facet of all GenomicDNA occurrence records

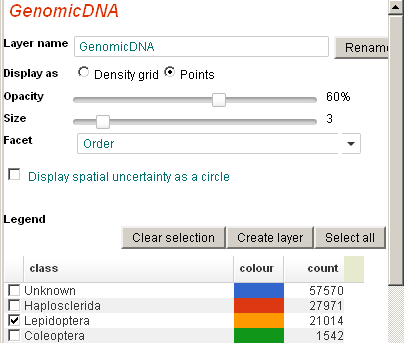

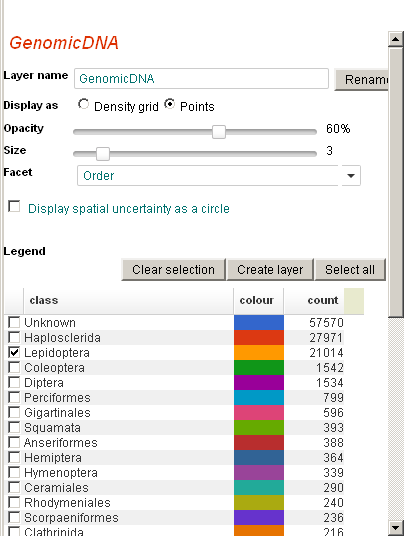

Facet the GenomicDNA layer for Order

Facet the GenomicDNA layer for Order

Once the occurrence layer is mapped, the records can be further filtered and faceted on all facetable fields using the existing legend tools. The image above shows the facet options in the legend. See Faceting and Filtering for more info »

In the example to the right and below, for the GenomicDNA faceted layer, we can choose to facet on ‘Order’ and choose the class, ‘Lepidoptera’.

Pressing the ‘Create layer’ button creates the new faceted layer that has all occurrences that include Genomic DNA data for Lepidopteran records (Butterflies and Moths).

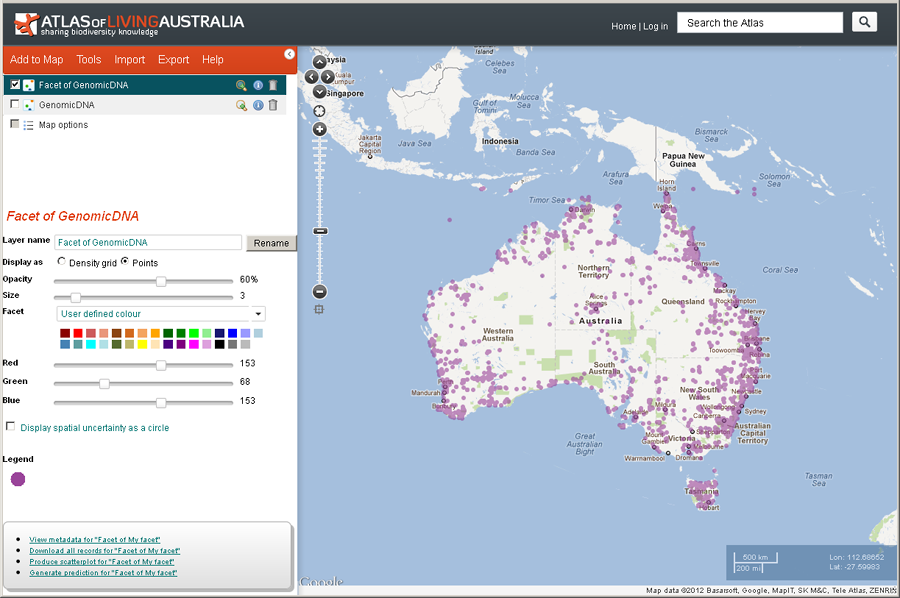

GenomicDNA and Lepidopteran facet layer displayed

GenomicDNA and Lepidopteran facet layer displayed

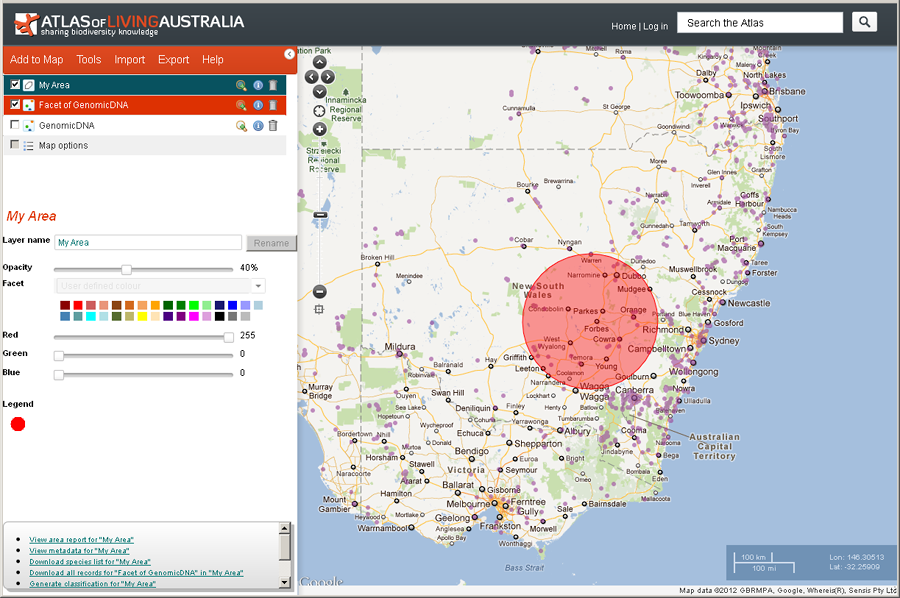

The Spatial portal displaying molecular occurrence data for the Order Lepidoptera, with an additional area added to the map.

The Spatial portal displaying molecular occurrence data for the Order Lepidoptera, with an additional area added to the map.

In the image above, an area around Forbes has been added. The user can choose to selectively download only those records within the area. See Add Areas to Map » and Export Point Sample »

When the layer metadata icon icon is clicked in the layers list the metadata popup is displayed for the Faceted layer. The metadata can be displayed in a separate window.

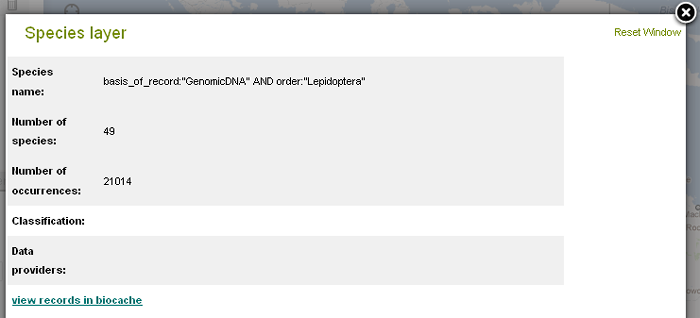

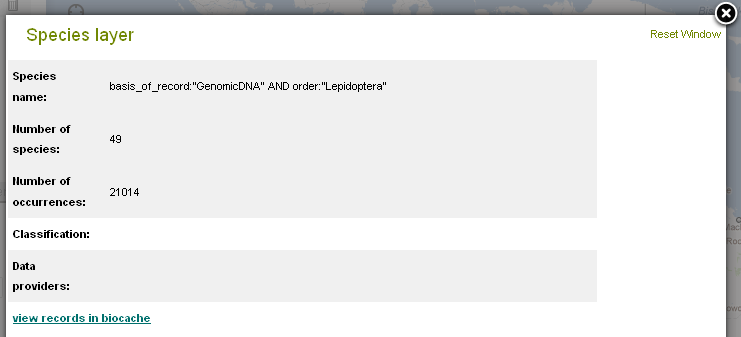

Metadata for GenomicDNA and Lepidoptera facet

Metadata for GenomicDNA and Lepidoptera facet
