The Points to Grid option accepts a set of taxon occurrence records (single species or more likely, an assemblage) and transforms these points into three separate outputs that are all related to a user-nominated grid size:

  1. A grid cell by species composition matrix. The number of occurrences of each of the species within each of the grid cells is tabulated and a CSV-format file produced.
  2. An occurrence density map. A moving average is used to smooth the number of occurrences in the extent of the moving average and the result placed at the centre grid cell.
  3. A species richness map. Calculated on the same basis as the occurrence density but the value is the average count of the number of different species.

The sites by species matrix is probably the most common data structure for ecological data analysis. The number of species occurrences and the species richness (unique number of taxa) are independently averaged over a moving window of grid cells.

From the menu option, select “Tools” and then “Points to Grid”.
Points to grid Step1

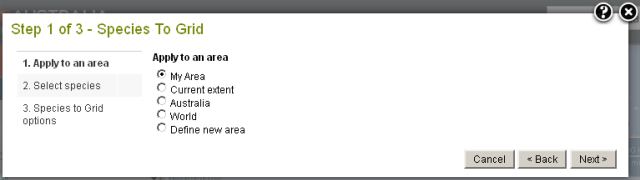

Choose an area to apply the species to grid process. You can define a new area on the fly or use a previously defined area. NOTE: Using the ‘Current extent’ window as the default may not be wise if that area contains marine and terrestrial environments and if the species of interest are only in the one environment. For purely terrestrial or marine species, it is better to define the area accordingly to reduce the size of the job. If you exceed the capabilities of the server, you will get a warning and the process will stop. You can then either reduce the area as stated, or the grid size or both.

Any predefined area (My Area) listed as a map layer in the top left layers list can be used for a Points to Grid

Click the “Next” button

Step 2: Select species

A single taxon (species or higher taxonomic level) or a List of species can be used. Either search for the scientific or common name, create a new list of species or use an existing list.

Points to Grid Step 3

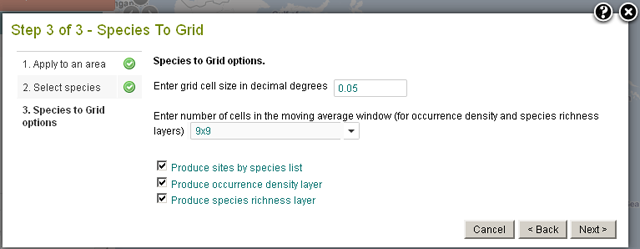

Set the size of each grid cell in decimal degrees and from the range of grid cell matrix size to make up the moving average window configuration (e.g. 9×9 grid cells, each with a length of your nominated grid cell size in decimal degrees). The occurrence density and species richness averages are calculated for the cell at the centre of the moving average window. The window then shifts cell by cell to calculate the next set of averages. The moving average and sites (grid cells) by species matrix is calculated for each grid cell in the defined area.

The user must choose to produce one or more of the following:

Points to Grid Data Preparation

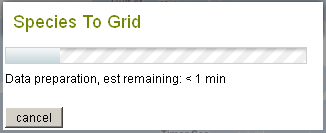

It can take several minutes to prepare the data and layers. The time taken is proportional to the size of the area defined and the size of the grid cells used.

Sites by Species CSV report

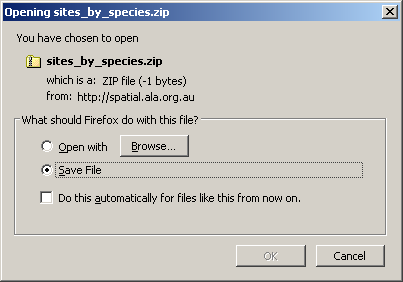

Download Species Zipfile

A sites by species CSV file containing a record for each grid cell with the presence or absence of the selected species. The first three fields of each record contains a cell identifier (concatenated longitude and latitude), the longitude (decimal degrees) and latitude (decimal degrees). This matrix is often sparse meaning that cells contain more absences than presences.

Sites By Species CSV

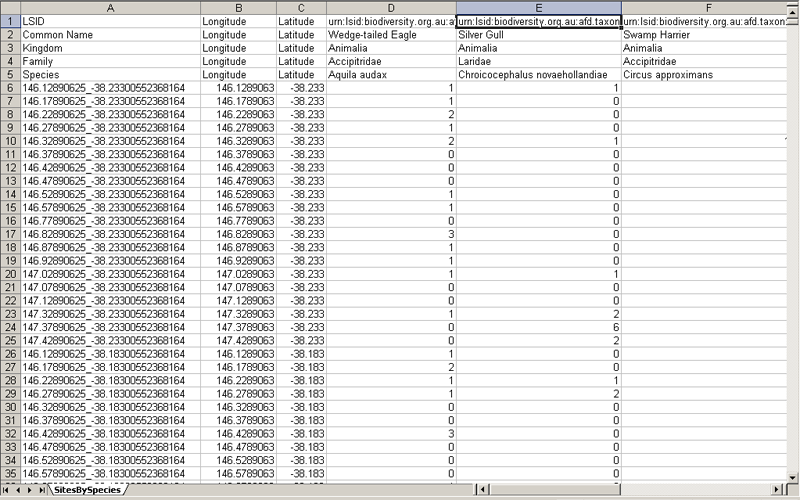

Example Sites by Species CSV report

Occurrence Density layer

Occurrence Density

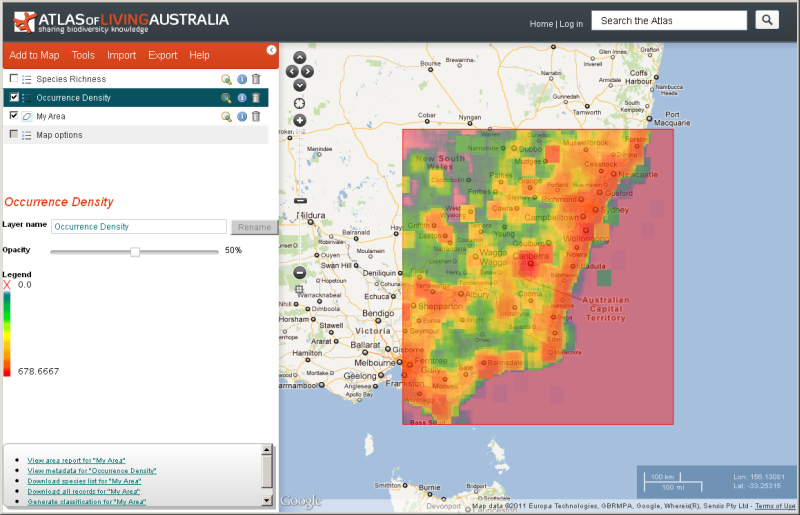

Example Occurrence Density layer

The occurrence density layer is the average number of species (or other taxa) occurrences within each grid cell area based on the moving average window parameters. The colour legend gives the ranges of values for the Occurrence Density layer.

Note: Occurrence Density may reflect the survey effort. Occurrence density is generally greater along roads and near sites of higher human population.

Species Richness layer

Species Richness

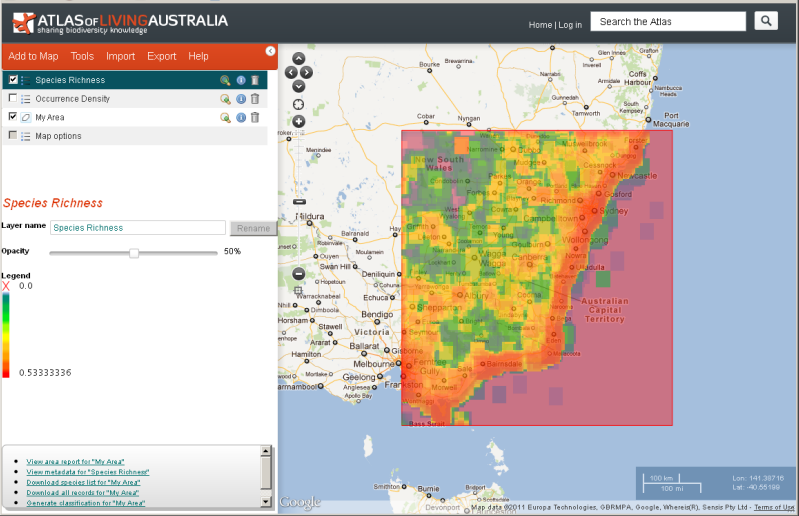

Example Species Richness layer

This layer shows the average species richness (uniqueness count) in each grid cell area based on the moving window parameters.

The colour legend gives the ranges of values for the Species Richness layer.
